Virtual Account H2H (SNAP)

Introduction

note

💡 Tip: Please watch this video tutorial for the complete integration workflow.

Definition of SNAP Virtual Account

SNAP Virtual Account (SNAP VA) is an API-based service that allows partners to programmatically create, check status, and delete Virtual Accounts. It enables structured payment processes aligned with the national system.

Purpose of the Integration

The purpose of integrating with YUKK SNAP VA is to generate Virtual Account (VA) numbers that can be used by end-users as a payment channel. Through this integration, partners can:

Provide customers with unique Virtual Account numbers for making seamless payments.
Ensure Virtual Account creation, query, and deletion follow standardized SNAP BI specifications.
Guarantee that Virtual Account payment statuses (such as paid, unpaid, expired, or canceled) are fully synchronized with the payment system.
Streamline reconciliation and financial settlement processes with YUKK as the acquirer.

Key Parties Involved

Merchant/Partner: Integrates SNAP VA APIs to create, inquire, and delete Virtual Accounts, while also managing financial reconciliation and the end-user payment experience.
Acquirer/YUKK: Provides the payment gateway backend to manage Virtual Accounts, perform real-time status checks, route payments, and ensure secure and reliable transactions.

Main API Functions

API Name	Description
Create VA	Generate a new Virtual Account for payment, with necessary details such as VA number, merchant info, validity period, etc.
Inquiry VA Status	Checks the real-time status of a Virtual Account to determine if it has been paid, is still active, invalid, or expired.
Delete / Cancel VA	Used to programmatically cancel or delete an active Virtual Account that is still in a pending/unpaid status.

Pre-Integration Steps

Here are the steps before you access Yukk Payment Gateway API collection:

Get your company information registered to our system by our Activation Team.
Receive your client credentials (Client ID, Client Secret, and MID from our Activation Team).
Use your issued credentials to request a B2B Access_Token from our Authentication API. This active Access_Token, alongside your MID, will be used to authorize and gain secure access to all subsequent transaction APIs within this collection.

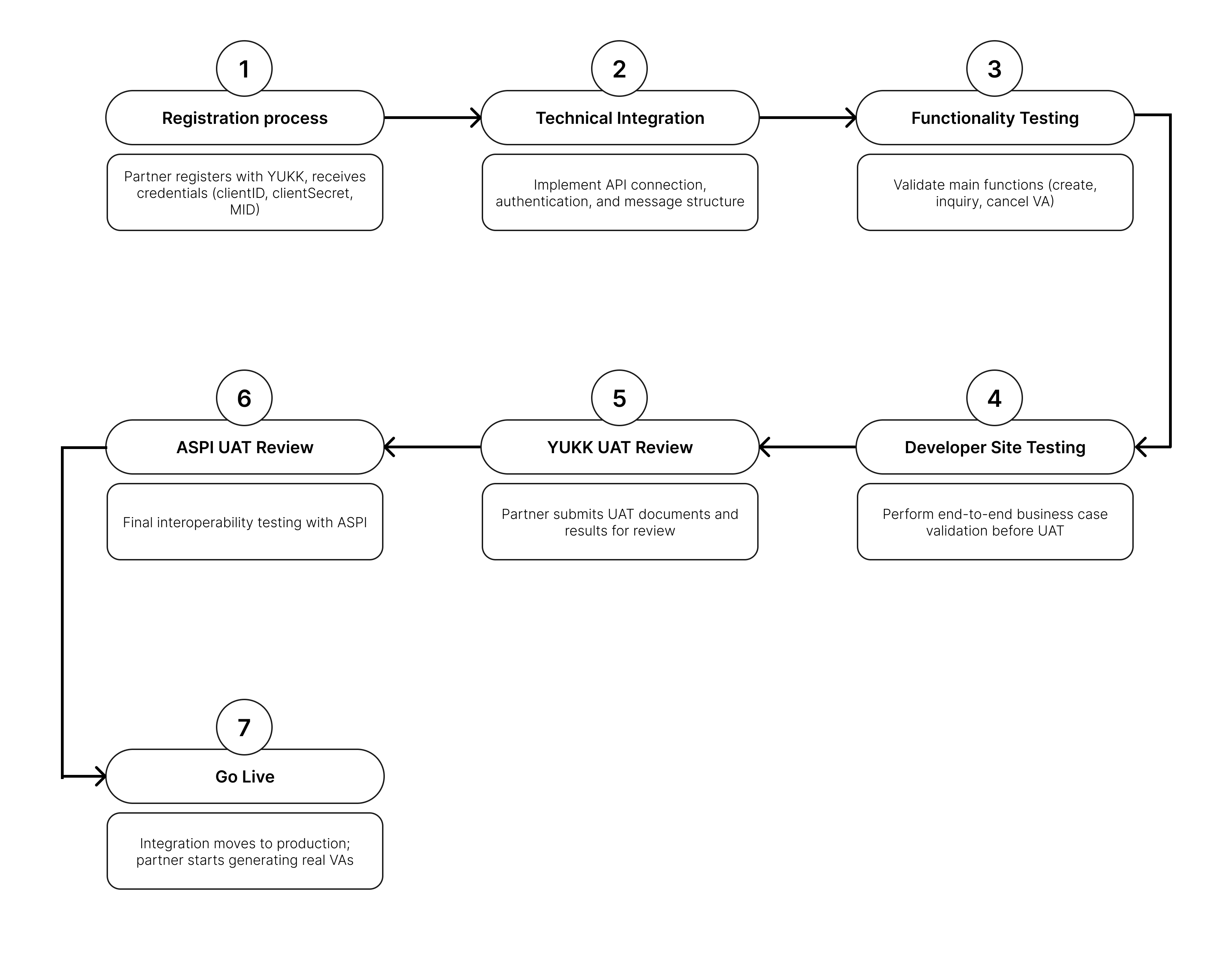

Flow Process

Integration Process

This section details the steps to go live, the functional use cases, and the technical sequence flow of the Virtual Account SNAP

Use Case Diagram

The following use case diagram illustrates the interaction between the main actors (Merchant and End User/Customer) with the YUKK system.

Merchant integrates with YUKK to create, inquire, and cancel VAs, and receive payment notifications.
End User (Customer) receives a VA number from the merchant and makes payment through available channels.

This diagram provides a high-level view of how the actors and YUKK system components communicate during the Virtual Account payment process.

Sequence Diagram

To provide a clearer understanding of the interaction flow within the SNAP Virtual Account integration, the following Sequence Diagram illustrates the end-to-end process from creating a Virtual Account to cancellation.

Sequence Diagram Process Description

No	Process Name	Description
1	Request Create VA	The merchant sends a request to create a Virtual Account to YUKK.
2	Return VA Number	YUKK returns the Virtual Account number that has been successfully created to the merchant.
3	Initiate Payment to VA	The user makes a payment to the provided Virtual Account number.
4	Send Payment Notification	YUKK sends the payment status notification to the merchant after receiving the transaction result from the internal system.The merchant receives the payment status (success/failed) from YUKK.
5	Notify Payment Status	The merchant receives the payment status (success/failed) from YUKK.
6	Request Cancel VA	The merchant submits a request to cancel the VA to YUKK (only if the VA status is still waiting/pending).
7	Confirm Cancellation Success	YUKK provides confirmation that the Virtual Account has been successfully canceled.

Base URL

YUKK Virtual Account SNAP provides two distinct environments to facilitate a secure development lifecycle. These include Staging for testing and Production for live commercial transactions. Please ensure that you configure the correct Base URL corresponding to your current integration phase to prevent connection and compatibility issues.

note

💡 YUKK VA SNAP Staging Base URL
https://sandbox.yukk.co

note

💡 YUKK VA SNAP Production Base URL
https://api.yukk.co

Format Type

This section provides explanations of the supported field requirement levels and data types along with their descriptions and examples. Each field in the API specification is associated with a specific format type to ensure consistency and proper validation.

Field Requirement Levels

Each field may be classified as Mandatory, Optional, or Conditional depending on the use case.

Type	Name	Description
(M)	Mandatory	The field must always be provided.
(O)	Optional	May or may not be provided.
(C)	Conditional	Required only in specific cases.

Data Types

Each request and response field is also assigned a data type that defines the expected input format.

Type	Description	Example
String	Alphanumeric	"`Yukk Indonesia`"
Integer	Whole numbers	`100`
Decimal	Numeric values with decimal	`99.99`
Boolean	Logical values	`true` / `false`
DateTime	Timestamp in ISO 8601 format	`2023-09-15T10:30:00`

Integration Guides & Resources

To support the SNAP VA integration process, YUKK provides the following materials to help partners and developers understand the integration flow, API implementation, testing procedures, and troubleshooting guidelines for functionality and developer site testing.

note

💡 Link Guidebook SNAP QRIS:

🔗: [Download the guidebook SNAP VA (PDF)]

Authentication for VA SNAP

To ensure secure and authorized access, YUKK utilizes digital signatures to validate every API request. These signatures are divided into two types based on their request function:

note

Used to secure the initial client credential exchange process to obtain a B2B Access Token. This digital signature is generated using your private key and validated by YUKK using your registered public key.

🔗 Visit our Asymmetric Signature Guide ↗

note

Used to sign and access all API services. This digital signature secures your payloads by hashing transaction data using your client secret and active access token.

🔗 Visit our Symmetric Signature Guide ↗

Virtual Account SNAP

Virtual Account SNAP is an API service for Virtual Accounts. This API helps partners create Virtual Accounts, inquiry status, and delete Virtual Accounts directly from the system.

`POST` Access Token

Get Access Token (B2B)

note

🌐 Endpoint URL to obtain the B2B Access Token
{{authBaseUrl}}/auth/openapi/v1.0/access-token/b2b

Use this API to obtain B2B accessToken, which should be included in all headers of Virtual Account API Collection.

Service code	73
API Name	API Access Token B2B
Version	1.0
HTTP Method	POST
Path	../{version}/access-token/b2b
Content Type	application/json

Request Header

Field	Type	Description
Content-Type	String (M)	Content type, value always “application/json”
User-Agent	String (M)	User-Agent is determined by the client environment/library
X-TIMESTAMP	String (M)	Transaction date time, in format YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time) format ISO8601 without milliseconds.
X-CLIENT- KEY	String (M)	Use client_id was generated by YUKK
X-SIGNATURE	String (M)	Asymmetric signature generated automatically using SHA256withRSA with your Private_Key as the key. Formula: stringToSign = client_ID + “I” + XTIMESTAMP

Request Body

Field	Attribute (MOC)	Type	Description
grantType	(M)	String	“client_credentials”
additionalInfo	(M)	Object
scope	(M)	String	"yukk.payment-gateway"

Response Headers

Accept	application/json
Content-Tye	application/json
X-CLIENT-KEY	583733826598333528123456
X-TIMESTAMP	2025-02-25T15:25:31+07:00
X-SIGNATURE	vp74/K7mrRVLjOEDB
Scope	yukk.payment-gateway

Response Body

{
	"grantType": "client_credentials",
        "additionalInfo": {
            "scope": "yukk.payment-gateway"
        }
}

Request Sample

//Get Access Token (B2B)
curl --location -g '{{authBaseUrl}}/auth/openapi/v1.0/access-token/b2b' \
--header 'Accept: application/json' \
--header 'Content-Type: application/json' \
--header 'X-CLIENT-KEY: {{clientId}}' \
--header 'X-TIMESTAMP;' \
--header 'X-SIGNATURE;' \
--header 'scope: yukk.payment-gateway' \
--data '{
    "grantType": "client_credentials",
    "additionalInfo": {
        "scope": "yukk.payment-gateway"
    }
}'

Response Sample

Body
Header (16)

    //200 OK
    {
        "responseCode": "2007300",
        "responseMessage": "Successful",
        "accessToken": "eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiJ9.eyJhdWQiOiI5NTExZDY2My1kOGU3LTQzNWQtYWZiNC00YmNmMzA0N2I1YmciLCJqdGkiOiI4ZTNmMTcwMWM2NTRhNzc5ZTJlMjkwMWE4M2FhOTFmYmQ0ZDE2M2JhYWRkZmE2NGFmYzQyYTQyZmVjNGRjNzBhN2E1ZDViMjFkZjJjY2EwMCIsImlhdCI6MTc3NjI0NjU2Ny41MDk1MDksIm5iZiI6MTc3NjI0NjU2Ny41MDk1MTQsImV4cCI6MTc3NjI0NzQ2Ny40OTMyOTIsInN1YiI6IiIsInNjb3BlcyI6WyJ5dWtrLnBheW1lbnQtZ2F0ZXdheSJdfQ.nJAGBVEMuRr5GzXe4Qb3gqYAb_okHX_UUe8RUd6RvNTcdevpUJ6otCgozafV7EJOP9-3LhSrQBIhRWDK1AVT-pzbU4Becu5hdaD9XDYB6yYKy8y5jVHMQW9ybkY0hg4iaMT8Fx3129G1ozjXPM-hN7MeHlROfFEGO4DjzLLXtPEjacL9qI6viBiLJtRZOkuS7bsF3T7U0c7lttIXHIRO058HSkMyKZ-IoPjN8Z9eI_9Ie4IHY5yLO06kygUxUoUkQBkg-k_L6Y38PBncGIabQypqIwseBqdJlPx_8f75oyi9x9_8mAUg945wOMxH7qkCZiO-h5mxb9OcqR3wCSmuofKkaGSnQUcRpNve_r9XIM0ZO1jQEX-cEtZW8ePaS_yINcJzieA1dswEpiLWGMr2vMHkhwAtH-aiwhaiWe4bbZdWgCEmHjgao0pl6JvNTW6I6iwL_X6EUqyUGLZlQc3G8tDiMN6pGzTsQwGm0UEoSsY_tJ85tefcOEZJVvVkaP1wR3UxZON6iQ4377rlCArqj-lfmwD-dl9EG7Ru5GKTr_bSgVfDQJTuoNeCYrAF0BVGfrP9IKx8u5gVAHXMsNWxb7nWgbvWWpJH3OpuUFr3Ydyt4IXvkbKDk3rUzmxrCCSDxawc1laxBFRJRyuAGuBxTY8Ay8gvUkEEAu7DTUlBpRQ",
        "tokenType": "Bearer",
        "expiresIn": "900",
        "additionalInfo": {
            "scope": "yukk.payment-gateway"
        }
    }

`POST` Create Virtual Account

The Virtual Account type (Fixed or Dynamic) is configured during onboarding. The system automatically applies the configured type, so no additional request parameter is required to specify the type.

note

🌐 Endpoint URL to generate a Virtual Account
{{baseUrl}}/payment-gateway/openapi/v1.0/transfer-va/create-va

This API allows you to create/generate the Virtual Account number. There are two types of Virtual Accounts available under this API:

Fixed Type: A fixed 16 digit virtual account number where the first 5 digit is bank code, the next 3 digit is YUKK code, and the last 8 digit is your merchant code (customable). Use a Fixed VA if you require a predefined, reusable Virtual Account number for a specific customer.

Dynamic Type: A Virtual Account number automatically generated by system. Use a Dynamic VA if the account number should be generated dynamically per transaction.

Specification Request

The following table is a specification of this API:

Service code	73
API Name	API Create Virtual Account
Version	1.0
HTTP Method	POST
Path	../openapi/{version}/transfer-va/create-va
Content Type	application/json

Request Header

The following table is a header of request parameter:

Field	Type	Description
Content-Type	String (M)	Content type, value always “application/json”
User-Agent	String (M)	User-Agent depend on library
Authorization	String (M)	Bearer “accessToken”
X-TIMESTAMP	String (M)	Transaction date time, in format YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time) format ISO8601 without milliseconds.
X-SIGNATURE	String (M)	Symmetric signature generated automatically using HMAC_SHA512 with your clientSecret as the key. Formula: stringToSign = HTTPMethod+”:“+ EndpointUrl +":"+ AccessToken +":“+ Lowercase(HexEncode(SHA256(minify(RequestBody))))+ ":“ +TimeStamp
X-PARTNER-ID	String (36) (M)	Using client ID
X-EXTERNAL-ID	String (36) (M)	Reference ID that is self-generated by the merchant, unique for each transaction (numeric string). Numeric string, must be unique per day.
CHANNEL-ID	String (5) (M)	00003

Request Body

The following table is a body of request parameter:

Field	Type	Description
partnerServiceId	String (8) (M)	Derivative of X-PARTNER-ID, similar to company code
customerNo	String (8) (M)	Unique number (up to 20 digits).
virtualAccountNo	String (28) (C)	Virtual Account Number ex: 9772269408126292 Mandatory for Fixed Type Optional for Dynamic Type
virtualAccountName	String (100) (M)	Name of Virtual Account
virtualAccountEmail	String (100) (M)	Email for Virtual Account
virtualAccountPhone	String (20) (M)	Virtual Account Phone Number
trxId	String (64) (M)	Transaction ID
totalAmount	Object
value	String (ISO4217) (M)	Number of amount
currency	String (3) (M)	IDR
expiredDate	String (25) (O)	Format: ISO-8601 (ex: 2020-12- 31T23:59:59 -07:00) Ref: expires_in
additionalInfo	Object
mid	String (500) (M)	Merchant ID
requestTime	Timestamp (M)	Payment request time
paymentChannelCode	String (50) (M)	Payment channel code of choice (ex: VA_BCA)
notificationUrl	String (255) (M)	The secure endpoint (webhook) URL registered by the Partner to receive payment notifications from YUKK. For detailed payload structures and specifications, please refer to the Webhook Payment Notification ↗
shippingFee	String (ISO4217) (O)	Shipping fee amount
notes	String (255) (O)	Additional notes
billing	Object
name	String (100) (O)	Billing name
phone	String (20) (O)	Billing phone
email	String (100) (O)	Billing email
address	String (255) (O)	Billing address
city	String (100) (O)	Billing city
state	String (100) (O)	Billing state
country	String (100) (O)	Billing country
postal code	String (5) (O)	Billing postal code

Request Sample

//Create Response
curl --location -g '{{baseUrl}}/payment-gateway/openapi/v1.0/transfer-va/create-va' \
--header 'Accept: application/json' \
--header 'Authorization: Bearer {{accessToken}}' \
--header 'X-TIMESTAMP:' \
--header 'X-SIGNATURE:' \
--header 'X-PARTNER-ID: {{clientId}}' \
--header 'X-EXTERNAL-ID: 1777455656' \
--header 'CHANNEL-ID: 00003' \
--data-raw '{
    "partnerServiceId": "12345",
    "customerNo": "10011212",
    "virtualAccountNo": "9912304000008328",
    "virtualAccountName": "Mutia",
    "virtualAccountEmail": "mutia.azizah@yukk.me",
    "virtualAccountPhone": "621313131313",
    "trxId": "SNAP-TEST238",
    "totalAmount": {
        "value": "5000.00",
        "currency": "IDR"
    },
    "expiredDate": "",
    "additionalInfo": {
        "mid": "{{mid}}",
        "requestTime": "",
        "paymentChannelCode": "VA_BRI",
        "notificationUrl": "https://webhook.site/0f1f8408-cde7-45c2-bc24-956416c0f6ea",
        "notes": "",
        "shippingFee": "",
        "billing": {
            "name": "",
            "phone": "",
            "email": "",
            "address": "",
            "city": "",
            "state": "",
            "country": "",
            "postalCode": ""
        }
    }
}'

Sample Response

Body
Header (16)

    //200 OK
    {
        "responseCode": "2002700",
        "responseMessage": "Successful",
        "virtualAccountData": {
            "partnerServiceId": "1234565591099775",
            "customerNo": "10011212",
            "virtualAccountNo": "1234565591099775",
            "virtualAccountName": "Mutia",
            "virtualAccountEmail": "mutia.azizah@yukk.me",
            "virtualAccountPhone": "621313131313",
            "trxId": "SNAP-TEST238",
            "totalAmount": {
            "value": "5000.00",
            "currency": "IDR"
            },
            "expiredDate": "2026-04-16T16:52:48+07:00",
            "additionalInfo": {
            "transactionCode": "PGWTS20260415226292607",
            "requestTime": "2026-04-15T16:52:46+07:00",
            "paymentChannelCode": "VA_BRI"
            }
        }
    }

`Webhook` Payment Notification

Upon successful payment, YUKK will automatically send a secure, signed HTTP POST notification to the Partner's Webhook URL, which must be explicitly provided via the notificationUrl parameter in the request payload during Virtual Account creation.

Request Header

Field	Type	Description
Content-Type	String (M)	Content type, value always “application/json”
Signature	String (M)	openssl_digest(client_secret+order_id+pmt_channel_code+amount+status, ‘sha512’)

Request Body

Field	Type	Description
code	String	Yukk transaction code
order_id	String	Partner transaction code
grand_total	Integer	Total amount to be paid
customer_name	String	Customer full name
customer_phone	String	Customer phone number
customer_email	String	Customer email
request_at	Datetime	Payment request time Format: YYYY-MM-DD hh:mm:ss
paid_at	Datetime	Payment paid time Format: YYYY-MM-DD hh:mm:ss
notes	String	Other notes if necessary
status	String	Payment status that will be sent to notification url SUCCESS/FAILED
merchant_branch	Object
name	String	Merchant name
payment_channel	Object
code	String	Payment channel code
name	String	Payment channel code
image_url	String
category	Object
code	String	Payment category code
name	String	Payment category name
va	Object
type	String	Type of VA (Fixed/Dymanic)
expired_in	String	Timeout session in seconds
account_id	String	ID account

Request Sample

{
    "code": "PGWTS20251203391946875",
    "order_id": "Testing-1764738424",
    "grand_total": 10000,
    "customer_name": "Mutia test",
    "customer_phone": "6287881253722",
    "customer_email": "tiiaazizah@gmail.com",
    "request_at": "2025-12-03 12:07:04",
    "paid_at": null,
    "notes": null,
    "status": "EXPIRED",
    "merchant_branch": {
    "name": "PG Activation 13a branch"
    },
    "payment_channel": {
    "code": "VA_BCA",
    "name": "Virtual Account BCA",
    "image_url": "http://localhost/storage/images/payment-channels/va-bca.png",
    "category": {
        "code": "VIRTUAL_ACCOUNT",
        "name": "Virtual Account"
    }
    },
    "va": {
    "type": "FIXED_OPEN",
    "expires_in": 86400,
    "account_id": "01101234"
    }
}

Headers

Accept	application/json
Authorization	Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiJ9.eyJhdWQiOiI5NTExZDY2My1kOGU3LTQzNWQtYWZiNC00YmNmMzA0N2I1YmciLCJqdGkiOiI5OWNhOGY3NTg4NzQ4NzhhOWQ4ZGZkMmU1YmJhNmRiNWZjYTgwMzc2OGZiNTkzMGI2MWRlMjAzMzFmNmMxMWRkNGIyNjVkZWUxNmFjM2I1OSIsImlhdCI6MTc3NjA0OTE3My40Mjc5MjUsIm5iZiI6MTc3NjA0OTE3My40Mjc5MywiZXhwIjoxNzc2MDUwMDczLjQxMzU5NCwic3ViIjoiIiwic2NvcGVzIjpbInl1a2sucGF5bWVudC1nYXRld2F5Il19.zgSkBUmY6S22jBRTAUJQdFVjA3MsHU5h2hu_WBRPMFHdTTk05Ic0N5jcs1x2DrEQEOlPLE01Vae99hEgQG4ipA5EYI7PzwCPpY_RVgfeACsMCV4OVztKg3I8uK1AuYxEBj5KpqpkGbgogvLv8NbwjOmjx4n5spgPw4cfTxTLlI1WCL4XGIMgGN_6ictpaRaqLA11EaMJDGGhHKDwcY1od4YSqjkQpJmkF7n88mVv31a-DSu1W430LRb4QE-biuHmozzxzh-MvNGbmpQR3HVeKXlX76lsUqQrNX0507oK3hBUMhqXEFOr98jRwtyLBrdYL2w6vr6MNC-bOH3GUEVvMA_CaDnZ7rS0sWc4W8HsYPOyNqGErO2IyPnKWQfIGaqwCh5UefjvPDcup_5tZZ5LJiFa33GxXMeydfl5F_I5D0qh1c0Hjk2Nv25gobisMfp1naD9_t-vZZ5qduImfuE-lQGahddoy6ThVvXi0tn6E2MupaE4CLH7rvzF1uauW7MvmLLl8kC3sjwopkTPbPx8PzhPYmPpSMcPXPzcKrLYHljci4v4mAaeag82iL1zLzoi34ii65j0WSCq92a0mpWbcx5ldO7Dqh0O216y6EB8vZYncMqWjgKSWCzCWfXWOyUS7YAaYflVIDXzgbWPhoSfNb-TUcf0SeSSy0JxSCkYb3A
X-TIMESTAMP	2026-04-13T10:04:43+07:00 2025-03-21T14:00:00+07:00
X-SIGNATURE	QDCcLcq0f0SDbvJF32smt0eBps5Ljx5iQjTX8cGjLmRxyiO/Z42YHprg7u48wX0mFM2l56DA0Qv3srGfb6JEEg== 8IHImeSBlzdRKjQw11Y+2hZYRmiY/hIALnN1O8ykTIot123456lnzeNmwnl5+O9Qro5eEyRCEt+3MwjW7TeA3A==
X-PARTNER-ID	6723d663-d8e7-435d-afb4-4bcf3047b5bg 1234d85b65bc3c437ffead1e28123466
X-EXTERNAL-ID	20260413T1004430700
CHANNEL-ID	00003

Body raw (json)

    //200 OK
    {
        "partnerServiceId": "12345",
        "customerNo": "10011212",
        "virtualAccountNo": "9912304000008328",
        "virtualAccountName": "Mutia",
        "virtualAccountEmail": "mutia.azizah@yukk.me",
        "virtualAccountPhone": "621313131313",
        "trxId": "SNAP-TEST238",
        "totalAmount": {
            "value": "5000.00",
            "currency": "IDR"
        },
        "expiredDate": "",
        "additionalInfo": {
            "mid": "{{mid}}",
            "requestTime": "",
            "paymentChannelCode": "VA_BRI",
            "notificationUrl": "https://webhook.site/0f1f8408-cde7-45c2-bc24-956416c0f6ea",
            "notes": "",
            "shippingFee": "",
            "billing": {
                "name": "",
                "phone": "",
                "email": "",
                "address": "",
                "city": "",
                "state": "",
                "country": "",
                "postalCode": ""
            }
        }
    }

`POST` Inquiry Status Virtual Account

note

🌐 Endpoint URL to check Virtual Account status
{{baseUrl}}/payment-gateway/openapi/v1.0/transfer-va/status

This API is used to check the real-time transaction status of a Virtual Account by providing the unique transaction identifiers in the request body. Below is the mapping of transaction status codes returned in the response:

Code	Status	Notes
00	SUCCESS	Transaction Success
03	PENDING	Payment initiated but not yet settled
05	CANCELED	Cancel transaction when status PENDING/WAITING
06	FAILED	Transaction rejected
08	EXPIRED	Transaction has exceeded valid time limit.

Specification Request

The following table is a specification of this API:

Service code	26
API Name	API Inquiry Status Virtual Account
Version	1.0
HTTP Method	POST
Path	../openapi/{version}/transfer-va/status
Content Type	application/json

Request Headers

Field	Type	Description
Content-Type	String (M)	Content type, value always “application/json”
User-Agent	String (M)	User-Agent depend on library
Authorization	String (M)	Bearer “accessToken”
X-TIMESTAMP	String (M)	Transaction date time, in format YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time) format ISO8601 without milliseconds.
X-SIGNATURE	String (M)	Symmetric signature generated automatically using HMAC_SHA512 with your clientSecret as the key. Formula: stringToSign = HTTPMethod+”:“+ EndpointUrl +":"+ AccessToken +":“+ Lowercase(HexEncode(SHA256(minify(RequestBody))))+ ":“ +TimeStamp
X-PARTNER-ID	String (M)	Using client ID
X-EXTERNAL-ID	String (M)	Reference ID that is self-generated by the merchant, unique for each transaction (numeric string). Numeric strings must be unique per day.
CHANNEL-ID	String (M)	00003

Request Body

Field	Type	Description
partnerServiceId	String (8) (M)	Derivative of X-PARTNER-ID, similar to company code
customerNo	String (8) (M)	Unique number (up to 20 digits).
virtualAccountNo	String (28) (M)	Virtual Account Number ex: 9772269408126292
inquiryRequestId	String (64) (C)	Required if TransactionCode not fill
additionaInfo	Object
mid	String (500) (M)	Merchant ID
transactionCode	String (100) (C)	Code of the transaction Required if InquiryRequestId not fill

Specification Response

The following part will be describe about parameter of response in this API:

Response Headers

Accept	application/json
Authorization	Bearer {{accessToken}}
X-TIMESTAMP	2025-02-25T15:25:31+07:00
X-SIGNATURE	vp74/K7mrRVLjOEDB
X-PARTNER-ID	583733826598333528123456
X-EXTERNAL-ID	1777455656
CHANNEL-ID	00003

Body raw (json)

{
    "partnerServiceId": "12345",
    "customerNo": "10011212",
    "virtualAccountNo": "",
    "inquiryRequestId": "",
    "additionalInfo": {
    "mid": "{{mid}}",
    "transactionCode": ""
    }
}

Sample Request

//Status Response
curl --location -g '{{baseUrl}}/payment-gateway/openapi/v1.0/transfer-va/status' \
--header 'Accept: application/json' \
--header 'Authorization: Bearer {{accessToken}}' \
--header 'X-TIMESTAMP: 2025-02-25T15:25:31+07:00' \
--header 'X-SIGNATURE: vp74/K7mrRVLjOEDB' \
--header 'X-PARTNER-ID: 583733826598333528123456' \
--header 'X-EXTERNAL-ID: 1778126014' \
--header 'CHANNEL-ID: 00003' \
--data '{
    "partnerServiceId": "12345",
    "customerNo": "10011212",
    "virtualAccountNo": "9772269408126292",
    "inquiryRequestId": "",
    "additionalInfo": {
    "mid": "eyJpdiI6IkNydnBWcVR0akJjZlA3Z2Q3bUVuUWc9PSIsInZhbHVlIjoiRU1FSkJRRXNCcE1Vek5Hd1pTcUVoQVNwNE15Mk5Wemo4ZTR1UExLU1FiNWU5amNxbUwrUk9tWnBiTnkzbGI3cEpzNHNhUU9idFJabisyR1hmOTY5UmRtMVVrN3RNNUwzOWVQOGQ5YnpYTjQ9IiwibWFjIjoiODI1Yjg3OGQ3OTAzYTZhMGRlNmYwNjY0NzA1ZTlhOTQyM2M5NmZlYTA4MTg2MGJiNTk3YjAxOTI0M2UwZTM0ZCIsInRhZy123456",
    "transactionCode": "MU165-99991"
    }
}'

Sample Response

Body
Headers

    //200 OK
    {
        "responseCode": "2002600",
        "responseMessage": "Successful",
        "virtualAccountData": {
            "partnerServiceId": "1234565591099775",
            "customerNo": "10011212",
            "virtualAccountNo": "1234565591099775",
            "inquiryRequestId": "SNAP-TEST238",
            "totalAmount": {
            "value": "5000.00",
            "currency": "IDR"
            },
            "trxDateTime": "2026-04-15T16:52:48+07:00",
            "transactionDate": ""
        },
        "additionalInfo": {
            "transactionCode": "PGWTS20260415226292607",
            "requestTime": "2026-04-15T16:52:46+07:00",
            "paymentChannelCode": "VA_BRI",
            "latestTransactionStatus": "03",
            "transactionStatusDesc": "pending"
        }
    }

`POST` Delete Virtual Account

note

🌐 Endpoint URL to delete a Virtual Account
{{baseUrl}}/payment-gateway/openapi/v1.0/transfer-va/delete-va

This endpoint is used to cancel the virtual account transaction that still on waiting/pendingstatus. The HTTP DELETE request is sent to the specified URL with the required parameters in the request body.

Specification Request

The following table is a specification of this API:

Service code	31
API Name	API Delete Virtual Account
Version	1.0
HTTP Method	DELETE
Path	../openapi/{version}/transfer-va/delete-va
Content Type	application/json

Request Header

The following table is a header of request parameter:

Field	Type	Description
Content-Type	String (M)	Content type, value always “application/json”
User-Agent	String (M)	User-Agent depend on library
Authorization	String (M)	Bearer “accessToken”
X-TIMESTAMP	String (M)	Transaction date time, in format YYYY-MM-DDTHH:mm:ss+07:00. Time must be in GMT+7 (Jakarta time) format ISO8601 without milliseconds.
X-SIGNATURE	String (M)	Symmetric signature generated automatically using HMAC_SHA512 with your clientSecret as the key. Formula: stringToSign = HTTPMethod+”:“+ EndpointUrl +":"+ AccessToken +":“+ Lowercase(HexEncode(SHA256(minify(RequestBody))))+ ":“ +TimeStamp
X-PARTNER-ID	String (M)	Using client ID
X-EXTERNAL-ID	String (M)	Reference ID that is self-generated by the merchant, unique for each transaction (numeric string). Numeric string, must be unique per day.
CHANNEL-ID	String (M)	00003

Request Body

The following table is a body of request parameter:

Field	Type	Description
partnerServiceId	String (8) (M)	Derivative of X-PARTNER-ID, similar to company code
customerNo	String (8) (M)	Unique number (up to 20 digits).
virtualAccountNo	String (28) (M)	Virtual Account Number ex: 9772269408126292
trxId	String (64) (M)	Transaction ID
additionalInfo	Object (O)
mid	String (500) (M)	Merchant ID
transactionCode / trxId	String (100) (C)	Use either trxId (provider) or transactionCode (Yukk) as the reference.

Specification Response

The following part will be describe about parameter of response in this API:

Response Header

Accept	application/json
Authorization	Bearer {{accessToken}}
X-TIMESTAMP	2025-02-25T15:25:31+07:00
X-SIGNATURE	vp74/K7mrRVLjOEDB
X-PARTNER-ID	583733826598333528123456
X-EXTERNAL-ID	1777455656
CHANNEL-ID	00003

Body raw (json)

{
    "partnerServiceId": "12345",
    "customerNo": "10011212",
    "virtualAccountNo": "",
    "trxId": "",
    "additionalInfo": {
        "mid": "{{mid}}",
        "transactionCode": ""
    }
}

Sample Request

//Delete Response
curl --location -g --request DELETE '{{baseUrl}}/payment-gateway/openapi/v1.0/transfer-va/delete-va' \
--header 'Accept: application/json' \
--header 'Authorization: Bearer {{accessToken}}' \
--header 'X-TIMESTAMP: 2025-02-25T15:25:31+07:00' \
--header 'X-SIGNATURE: vp74/K7mrRVLjOEDB' \
--header 'X-PARTNER-ID: 583733826598333528123456' \
--header 'X-EXTERNAL-ID: 1778126014' \
--header 'CHANNEL-ID: 00003' \
--data '{
    "partnerServiceId": "12345",
    "customerNo": "10011212",
    "virtualAccountNo": "1234565591099775",
    "trxId": "SNAP-TEST238",
    "additionalInfo": {
        "mid": "{{mid}}",
        "transactionCode": "PGWTS20260415226292607"
    }
}'

Sample Response

Body
Headers [18]

    //200 OK
    {
        "responseCode": "2003100",
        "responseMessage": "Successful",
        "virtualAccountData": {
        "partnerServiceId": "1234565591099775",
        "customerNo": "10011212",
        "virtualAccountNo": "1234565591099775",
        "trxId": "SNAP-TEST238"
        },
        "additionalInfo": {
        "transactionCode": "PGWTS20260415226292607",
        "requestTime": "2026-04-15T16:52:46+07:00",
        "paymentChannelCode": "VA_BRI",
        "latestTransactionStatus": "05",
        "transactionStatusDesc": "canceled"
        }
    }

Server	nginx
Date	Wed, 15 Apr 2026 09:49:27 GMT
Content-Type	application/json
Transfer-Encoding	chunked
Connection	keep-alive
X-Powered-By	PHP/8.3.8
X-TIMESTAMP	2026-04-15T09:49:23+07:00
X-CLIENT-KEY	9511d663-d8e7-435d-afb4-4bcf3047b5bg
Cache-Control	private, must-revalidate
pragma	no-cache
expires	1
X-RateLimit-Limit	60
X-RateLimit-Remaining	58
X-Frame-Options	SAMEORIGIN
X-Content-Type-Options	nosniff
X-XSS-Protection	1; mode=block

Server	nginx
Date	Wed, 15 Apr 2026 09:52:49 GMT
Content-Type	application/json
Transfer-Encoding	chunked
Connection	keep-alive
X-Powered-By	PHP/8.3.8
Cache-Control	private, must-revalidate
pragma	no-cache
expires	1
X-Frame-Options	SAMEORIGIN
X-Content-Type-Options	nosniff
Content-Security-Policy-Report-Only	default-src 'self'; report-uri /csp-report-endpoint;
Referrer-Policy	strict-origin-when-cross-origin
Set-Cookie	Path=/; HttpOnly; Secure
Strict-Transport-Security	max-age=31536000; includeSubdomains; preload
X-XSS-Protection	1; mode=block

Server	nginx
Date	Wed, 15 Apr 2026 09:53:29 GMT
Content-Type	application/json
Transfer-Encoding	chunked
Connection	keep-alive
X-Powered-By	PHP/8.3.8
Cache-Control	private, must-revalidate
pragma	no-cache
expires	-1
X-Frame-Options	SAMEORIGIN
X-Content-Type-Options	nosniff
Content-Security-Policy-Report-Only	default-src 'self'; report-uri /csp-report-endpoint;
Referrer-Policy	strict-origin-when-cross-origin
Set-Cookie	Path=/; HttpOnly; Secure
Strict-Transport-Security	max-age=31536000; includeSubdomains; preload
X-XSS-Protection	1; mode=block

Server	nginx
Date	Wed, 15 Apr 2026 09:55:43 GMT
Content-Type	application/json
Transfer-Encoding	chunked
Connection	keep-alive
X-Powered-By	PHP/8.3.8
Cache-Control	private, must-revalidate
pragma	no-cache
expires	-1
X-Frame-Options	SAMEORIGIN
X-Content-Type-Options	nosniff
Content-Security-Policy-Report-Only	default-src 'self'; report-uri /csp-report-endpoint;
Referrer-Policy	strict-origin-when-cross-origin
Set-Cookie	Path=/; HttpOnly; Secure
Strict-Transport-Security	max-age=31536000; includeSubdomains; preload
X-XSS-Protection	1; mode=block

Introduction​

Definition of SNAP Virtual Account​

Purpose of the Integration​

Key Parties Involved​

Main API Functions​

Pre-Integration Steps​

Flow Process​

Integration Process​

Use Case Diagram​

Sequence Diagram​

Base URL​

Format Type​

Field Requirement Levels​

Data Types​

Integration Guides & Resources​

Authentication for VA SNAP​

Virtual Account SNAP​

POST Access Token​

POST Create Virtual Account​

Webhook Payment Notification​

POST Inquiry Status Virtual Account​

POST Delete Virtual Account​

Introduction

Definition of SNAP Virtual Account

Purpose of the Integration

Key Parties Involved

Main API Functions

Pre-Integration Steps

Flow Process

Integration Process

Use Case Diagram

Sequence Diagram

Base URL

Format Type

Field Requirement Levels

Data Types

Integration Guides & Resources

Authentication for VA SNAP

Virtual Account SNAP

`POST` Access Token

`POST` Create Virtual Account

`Webhook` Payment Notification

`POST` Inquiry Status Virtual Account

`POST` Delete Virtual Account
